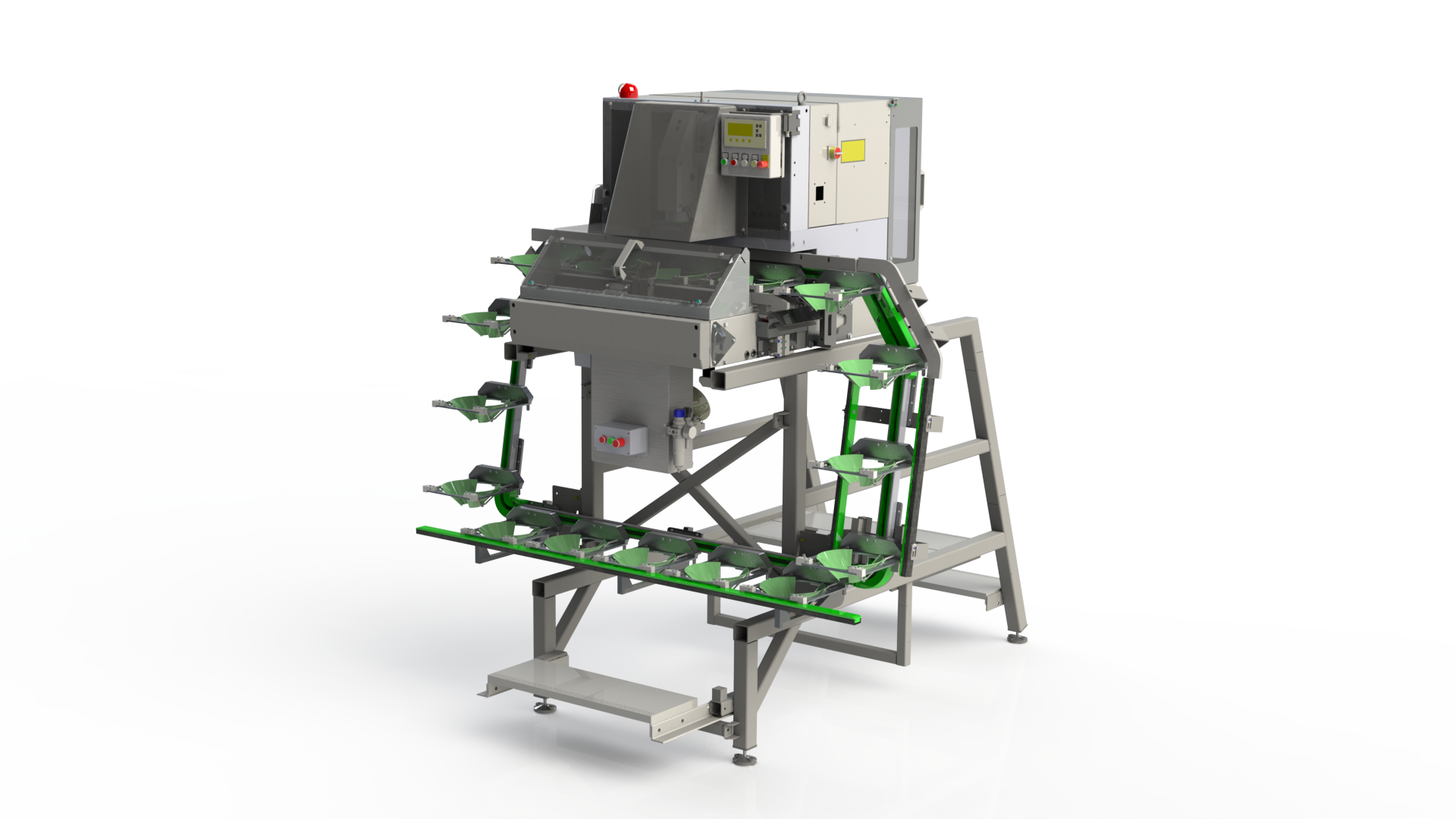

VePack200-PHV

The VePack 200-PHV has a vertical in-feed system. The standard version (VePack 200-PHV 16-5) has 16 cups (of which 5 on the bottom part of the in-feed). This system is around 190 cm wide, and perfect for max. 2 operators.

A wider version with more cups can be supplied, so more persons can work on one unit. For the packhouse we have supplied versions with an in-feed section up to 3,5 meters (VePack PHV 26), suitable for up to 4 persons.

The VePack 200-PHV can be supplied stand alone, or as a multiple system solution with integrated logistics.

All systems can be supplied with labeling, stamping and/or printing. In combination with the vertical in-feed system, integrated grading (on weight and/or size) and film length optimization options can also be offered, ensuring that underweight products are not packed, thus saving on recall, labor and film costs.

Your advantages
• Maximum flexibility in the number of operators per machine.
• Optimal solution for pre-cleaning at the line.
• Optional integration of grading by weight (and/or size).
• Complete packing & handling solutions can be offered.

Specifications
VePack200-PHV
Dimensions
Length 2225 mm
Width 2000-3500 mm
Height 2320 mm
Weight 250-300 kg
Production
Max. capacity 1100 pc/hour
Electrical Details
Power supply 230 VAC 50Hz+PE
Power consumption 1kW
Pneumatic details
Air supply 7 bar
Air consumption 125 NL/min
Film specifications
Material CPP-Film,
Width 450-600 mm
Thickness 12-17 µ
Options
VeStamp x
VePrint x
VeLabel x
Integrated grading x
Banderole -

The capacity is depending on product size, packing conditions and the type of film which is used.
